Male Pipe Pump Connectors

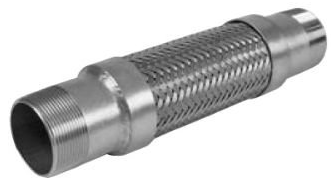

Flexible Male Pipe Pump Connectors
| Hose ID. | P/N | Overall Length | Live Length | Length of Fitting (Per End) | Working Pressure PSI @ 70 F | Approx. Weight lbs. |
| 1/2" | GHMM-08 | 6-1/2" | 2-1/4" | 1-1/2" | 1125 | .60 |
| 3/4" | GHMM-12 | 7" | 2-1/4" | 1-1/2" | 760 | .80 |
| 1" | GHMM-16 | 8" | 3" | 1-3/4" | 525 | 1.0 |
| 1-1/4" | GHMM-20 | 8-1/2" | 3" | 2" | 490 | 1.5 |
| 1-1/2" | GHMM-24 | 9" | 3-1/4" | 2" | 450 | 2.0 |
| 2" | GHMM-32 | 10-1/2" | 4-1/2" | 2-1/4" | 400 | 2.7 |
| 2-1/2" | GHMM-40 | 12" | 5-1/2" | 2-1/2" | 285 | 4.0 |
| 3" | GHMM-48 | 14" | 6-1/2" | 3" | 260 | 6.0 |
| 4" | GHMM-64 | 16" | 7" | 3-1/2" | 240 | 9.0 |
*Note: Larger sizes, custom lengths, and other fitting options are available.
FLEXIBLE MALE PIPE CONNECTOR SPECIFICATIONS:
- Male NPT End Connections, Carbon Steel Schedule 40
- Stainless Steel Hose
- Stainless Steel Single Braid
FLEXIBLE MALE PIPE CONNECTOR OPTIONS:
- Schedule 80 Fittings
- Stainless Steel Fittings
- Hex Nut Attachment
- Double Braid
Click here to Request A Quote or call us today at 1-888-504-2620
