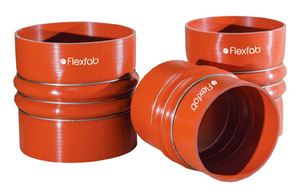

Large ID Charge Air Connector (CAC)
Can be used on both hot side or cold side of the Charge-Air Cooler system
Notice: Flexfab recommends double clamping at each end for proper installation.
Construction:
- 6-Ply Silicone Coated Meta-Aramid Fabric with Stainless Steel Pressure Retention Rings
Specifications:
- Temperature range is -65°F (-54°C) to +500°F (+260°C)
- Wall thickness is .138/.198
Applications:
- Used on diesel engines to deliver pressurized intake air to the charge air intercooler and intake manifold
| Part Number | Inside Diameter Inch|MM | Outside Diameter Inch|MM | Overall Length Inches | Convolutes (Humps) | Stainless Steel Rings | Maximum Operating Pressure - PSI | Weight LBS | Clamp | ||
| 7968 | 6.00 | 152 | 6.34 | 161 | 8.00 | 2 | 3 | 50 | 1.42 | 2584-0662 |
| 7969 | 7.00 | 178 | 7.34 | 186 | 8.00 | 2 | 3 | 40 | 1.68 | 2584-0762 |
| 7970 | 8.00 | 203 | 8.34 | 212 | 8.00 | 2 | 3 | 40 | 1.92 | 2584-0862 |
*Specifications for reference only. Specific test data available on request.
Available in the following hose ID sizes:
ID Fractional (Inch) | 6” | 7” | 8” |
ID Decimal (Inch) | 6.00” | 7.00” | 8.00” |
ID Millimeter | 152mm | 178mm | 203mm |
Standard Sizes (ID x OAL) | 6.00” x 8.00” | 7.00” x 8.00” | 8.00” x 8.00” |
*Additional & Custom Sizes Available!
