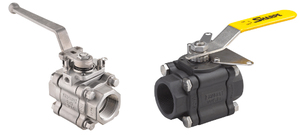

High Temperature Ball Valves
Global Hose offers a wide range of high-temperature ball valves in one-piece, two-piece, three-piece, full port and standard port configurations. These high-temperature ball valves are ideal for heavy-duty industrial applications that require temperatures that can reach up to 1000°F. The extensive offering of high-temperature ball valves is available in a variety of body materials, including carbon steel, Hastelloy C, 316 stainless steel, Alloy 20, 254 SMO® and more. Additionally, the variety of configurations and designs allow for proper construction and testing, reduced installation errors, and easy identification of valve position.
Design & Features:
- Rugged body & end pieces designed for higher class applications
- Stem design with increased stem diameters for heavy-duty applications
- Fully encapsulated body seals to prevent wasted time and labor-intensive disassembly
- Unique handles with non-slip grip designs
- Various stem assemblies dependent on application and temperature requirements
- Wide range of sizes and pressure classes available
Applications:
- Petroleum
- Chemical Processing
- Petrochemical
- Marine
- Brewing Systems
- Mining & Minerals
- Pulp & Paper
Available in the following high-temperature series:
| Series Number | Type | Max Pressure (PSI) | Max Temp. |
Series 84/99 & FS84/FS99 | 3-Piece Standard/Full Port Ball Valves | Vacuum to 1480 PSI | -50°F to 600°F |
Series 80/89 & FS80/FS89 | 3-Piece Standard/Full Port Ball Valves API 608 | Vacuum to 1970 PSI | -50°F to 600°F |
Series HP80/HP89 | 3-Piece Standard/Full Port Ball Valves | Vacuum to 3000 PSI | -50°F to 600°F |
Series 70/74 & FS70/FS74 | Flanged 2-Piece Full Port/1-Pc Standard Port Ball Valves API 608 | 740 PSI | 600°F |
Series 60 | 3-Piece High-Pressure Ball Valve Standard Port Valves | Vacuum to 6000 PSI | -50°F to 600°F |
Series M80/89 & M70/74 *TFM® is a registered trademark of Dyneon • Delrin® is a registered trademark of Dupont • Kel-F® is a registered trademark of 3M | Metal Seated Standard/Full Port Ball Valves | 1970 PSI | 1000°F |
Series V84 | 3-Piece V-Port Control Valve | Vacuum to 1480 PSI | -50°F to 600°F |
Series W84/W99 *TFM® is a registered trademark of Dyneon • Delrin® is a registered trademark of Dupont • Kel-F® is a registered trademark of 3M | 3-Piece Steam and Thermal Fluid Ball Valve | 500 PSI - Maximum Working Steam Pressure | 600°F for Thermal Fluids |
Series CL | 3-Piece Chlorine Standard/Full Port Ball Valve | 1480 PSI | 550°F |
Series D84 | 3-Piece Standard Port Diverter Ball Valve | 1480 PSI | 600°F |
*Dependent on Size, Body, Seat Material & Valve Design.
