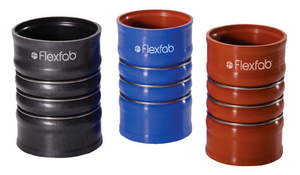

Heavy-Wall Charge Air Connector (CAC)
Hot Or Cold Side Heavy-Wall Charge Air Connectors
Construction:
- 4-Ply Heavy Duty Silicone Coated Meta-Aramid Fabric with Heavy Duty Stainless Steel Pressure Retention Rings
Specifications:
- Temperature range is -65°F (-54°C) to +500°F (+260°C)
- Wall thickness is .117/.163
Applications:
- Used on diesel engines to deliver pressurized intake air to the charge air intercooler and intake manifold
| Part Number | Inside Diameter Inch|MM |
Outside Diameter Inch|MM |
Overall Length Inches | Convolutes (Humps) | Stainless Steel Rings | Maximum Operating Pressure - PSI | Weight LBS | Clamp | ||
| 4076-0001 | 2.50 | 64 | 2.73 | 69 | 6.00 | 2 | 3 | 80 | 0.5 | 2583-0250 |
| 4074-0001 | 3.00 | 76 | 3.23 | 82 | 6.00 | 2 | 3 | 70 | 0.5 | 2588-0306 |
| 4073-0001 | 3.50 | 89 | 3.73 | 95 | 6.00 | 2 | 3 | 70 | 0.5 | 2588-0356 |
| 4070-0001 | 4.00 | 102 | 4.23 | 107 | 6.00 | 2 | 3 | 70 | 0.5 | 2588-0406 |
| 4075-0001 | 4.50 | 114 | 4.73 | 120 | 6.00 | 2 | 3 | 60 | 0.5 | 2588-0456 |
*Specifications for reference only. Specific test data available on request.
| Part Number | Inside Diameter Inch|MM |
Outside Diameter Inch|MM |
Overall Length Inches | Convolutes (Humps) | Stainless Steel Rings | Maximum Operating Pressure - PSI | Weight LBS | Clamp | ||
| 4076-0002 | 2.50 | 64 | 2.73 | 69 | 6.00 | 2 | 3 | 80 | 0.5 | 2583-0250 |
| 4074-0002 | 3.00 | 76 | 3.23 | 82 | 6.00 | 2 | 3 | 70 | 0.5 | 2588-0306 |
| 4073-0002 | 3.50 | 89 | 3.73 | 95 | 6.00 | 2 | 3 | 70 | 0.5 | 2588-0356 |
| 4070-0002 | 4.00 | 102 | 4.23 | 107 | 6.00 | 2 | 3 | 70 | 0.5 | 2588-0406 |
| 4075-0002 | 4.50 | 114 | 4.73 | 120 | 6.00 | 2 | 3 | 60 | 0.5 | 2588-0456 |
*Specifications for reference only. Specific test data available on request.
Flexfab Duraguard™
Construction:
- 4-Ply Heavy Duty Silicone Coated Meta-Aramid Fabric with Heavy Duty Stainless Steel Pressure Retention Rings
- High temperature fluorocarbon elastomeric liner
Specifications:
- Temperature range is -65°F (-54°C) to +500°F (+260°C)
- Wall thickness is .117/.163
- Designed to meet the EPA 2007 and EURO IV & V requirements for reduced emissions
Applications:
- Used on diesel engines to deliver pressurized intake air to the charge air intercooler and intake manifold
- Fluorocarbon lining eliminates closed crankcase vapors from permeating through the sidewall of the intercooler connection bellows at 500°F (260°C)
| Part Number | Inside Diameter Inch|MM |
Outside Diameter Inch|MM |
Overall Length Inches | Convolutes (Humps) | Stainless Steel Rings | Maximum Operating Pressure - PSI | Weight LBS | Clamp | ||
| 1076-0003 | 2.50 | 64 | 2.73 | 69 | 6.00 | 2 | 3 | 80 | 0.5 | 2583-0250 |
| 1074-0003 | 3.00 | 76 | 3.23 | 82 | 6.00 | 2 | 3 | 70 | 0.5 | 2588-0306 |
| 1073-0003 | 3.50 | 89 | 3.73 | 95 | 6.00 | 2 | 3 | 70 | 0.5 | 2588-0356 |
| 1070-0003 | 4.00 | 102 | 4.23 | 107 | 6.00 | 2 | 3 | 70 | 0.5 | 2588-0406 |
| 1075-0003 | 4.50 | 114 | 4.73 | 120 | 6.00 | 2 | 3 | 60 | 0.5 | 2588-0456 |
*Specifications for reference only. Specific test data available on request.
Available in the following hose ID sizes:
ID Fractional (Inch) | 2-1/2” | 3” | 3-1/2” | 4” | 4-1/2” |
ID Decimal (Inch) | 2.50” | 3.00” | 3.50” | 4.00” | 4.50” |
ID Millimeter | 64mm | 76mm | 89mm | 102mm | 114mm |
Standard Sizes (ID x OAL) | 2.50” x 6.00” | 3.00” x 6.00” | 3.50” x 6.00” | 4.00” x 6.00” | 4.50” x 6.00” |
*Additional & Custom Sizes Available!
