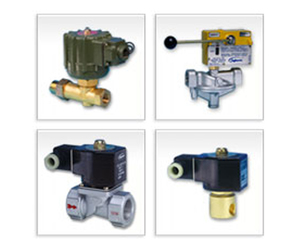

Combustion / Fuel Valves
Combustion/Fuel Solenoid Valves are used for automation, for the security of combustion equipment for boilers, furnaces, etc., and for the oil and petrochemical industries.
1330/2030, 1332, and 1388 Series valves are especially designed to comply with the Resolutions, Regulations, and Recommendations for the use of Natural Gas in industrial installations. They may be used with other gases, such as LPG, propane, manufactured gas, etc., as well as with air or any other non-combustible neutral gas.
The maximum working pressure for 1330/2030 series Normally Closed diaphragm valves, when used as relief valves in Natural Gas burners, is 0.160 kg/cm2. With respect to the Normally Open valves of the same series, it is 0.5 kg/cm2 with standard diaphragms and 2 kg/cm2 with reinforced diaphragms.
1330/2030 Series Normally Closed diaphragms valves are optionally provided with adjustable slow openings up to 10 sec.
1388 Series valves include a system that allows them to open in two stages, the first of which is quick and with adjustable opening percentage, and the second is time adjustable up to > 20 seconds. Both 1330 / 2030 and 1332 and 1388 Series are optionally provided with micro contacts for proof of closed valve. 1330 (Ø 1°) and 2030 Series have a reed switch, and the others have an SPDT micro switch.
GNC 2094 series valves have been designed to handle high-pressure fluids such as gaseous fuels and offer the customer the ultimate in performance, resistance, and efficiency under hard working conditions. In addition, the piston system allows perfect opening and shutoff through an 8 mm passage, by means of a pilot orifice suited for high pressure.
 |
 |
 |
 |
 |
| 1312 2 way solenoid valves. For fuel oil. | 1327 Normally closed and Normally open. Direct acting. | 1330 2 way valves. For fuel gas and other gases. | 1332 Free handle manual reset safety valve. | 1335 Normally closed and Normally open. Direct acting or pilot operated. |
 |
 |
 |
 |
 |
| 1356 2 way solenoid valves for fuel oil, gas-oil and mixtures thereof. | 1388A Solenoid valves with slow opening and quick shutoff. | 1388D Solenoid valves with slow opening and quick shutoff. | 2012 2 way solenoid valves. For fuel oil. | 2026 Normally closed Micro valve. Direct acting. |
 |
 |
 |
 |
|

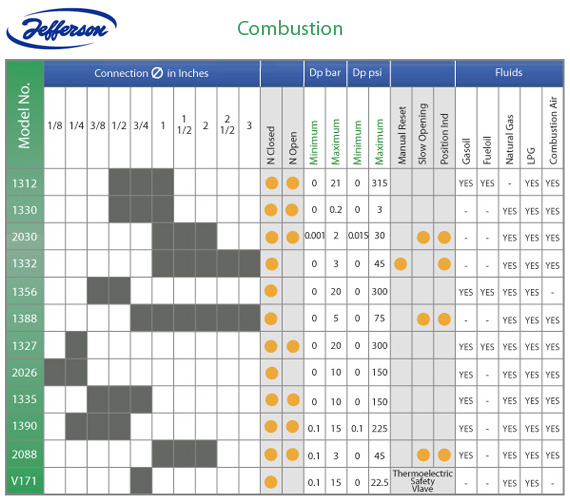

| 2030 2 way valves. For fuel gas and other gases. | 2088 Solenoid valves with slow opening and quick shutoff. | V171 Thermoelectric safety valves. | Table for Combustion |
