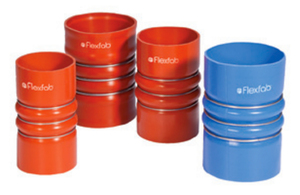

Charge Air Connector (CAC) – Hot Side
Construction:
• 4 Ply Silicone Coated Meta-Aramid Fabric with Stainless Steel Pressure Retention Rings
Specifications:
• Temperature range is -65°F (-54°C) to +500°F (+260°C)
• Wall thickness is .085/.135
Applications:
• Used on diesel truck engines to deliver pressurized intake air to the charge air intercooler and intake manifold
| Part Number | Inside Diameter Inch MM | Outside Diameter Inch MM | Overall Length Inches | Convolutes (Humps) | Stainless Steel Rings | Max Operating Pressure - PSI | Weight LBS | Clamp | ||
| 7887 | 2.50 | 64 | 2.73 | 69 | 6.00 | 2 | 3 | 60 | 0.5 | 2583-0250 or 2584-0312 |
| 7731-0001 | 3.00 | 76 | 3.23 | 82 | 6.00 | 2 | 3 | 60 | 0.5 | 2583-0300 or 2584-0362 |
| 7732-0001 | 3.50 | 89 | 3.73 | 95 | 6.00 | 2 | 3 | 55 | 0.5 | 2583-0350 or 2584-0412 |
| 7717 | 3.50 | 89 | 3.73 | 95 | 7.50 | 2 | 3 | 55 | 0.5 | 2583-0350 or 2584-0462 |
| 7715-0002 | 4.00 | 102 | 4.23 | 107 | 6.00 | 2 | 3 | 50 | 0.5 | 2583-0400 or 2584-0462 |
| 7723 | 4.00 | 102 | 4.23 | 107 | 6.00 | 1 | 2 | 50 | 0.5 | 2583-0400 or 2584-0462 |
| 1020-0001 | 4.00 | 102 | 4.23 | 107 | 6.50 | 2 | 3 | 50 | 0.5 | 2583-0400 or 2584-0462 |
| 7716 | 4.00 | 102 | 4.23 | 107 | 7.00 | 2 | 3 | 50 | 0.6 | 2583-0400 or 2584-0462 |
| 7728 | 4.00 | 102 | 4.23 | 107 | 7.50 | 2 | 3 | 50 | 0.6 | 2583-0400 or 2584-0462 |
| 7727-0001 | 4.00 | 102 | 4.23 | 107 | 8.00 | 2 | 3 | 50 | 0.7 | 2583-0400 or 2584-0462 |
| 7742-0001 | 4.50 | 114 | 4.73 | 120 | 6.00 | 2 | 3 | 45 | 0.5 | 2583-0450 or 2584-0512 |
| 7797 | 5.00 | 127 | 5.23 | 133 | 6.00 | 2 | 3 | 35 | 0.5 | 2583-0500 or 2584-0562 |
*Specifications for reference only. Specific test data available on request.
Available in the following hose ID sizes:
ID Fractional (Inch) | 2-1/2” | 3” | 3-1/2” | 4” | 5” |
ID Decimal (Inch) | 2.50” | 3.00” | 3.50” | 4.00” | 5.00” |
ID Millimeter | 64mm | 76mm | 89mm | 102mm | 127mm |
Standard Sizes (ID x OAL) | 2.50” x 6.00” | 3.00” x 6.00” | 3.50” x 6.00” | 3.50” x 7.50” | 4.00” x 6.00” | 4.00” x 6.50” | 4.00” x 7.00” | 4.00” x 7.50” | 4.00” x 8.00” | 4.50” x 6.00” | 5.00” x 6.00” |
*Additional & Custom Sizes Available!
