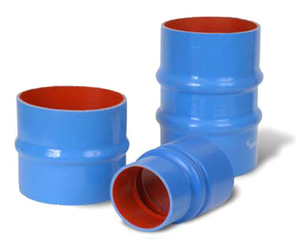

7901 Series: Marine Wet Exhaust Bellows
Limited Stock
Please call for availability
Construction:
- Silicone hose with 6 plies of Polyester Reinforcement
Specifications:
- Meets or exceeds the operating requirements of SAE J2006 R3, ISO33660, SAE J1942
- Temperature range is -65°F (-54°C) to +350°F (+177°C)
- Working pressure is 1/3 of the burst pressure
- Wall thickness is .225/.300
Applications:
- Marine wet exhaust
Marine Wet Exhaust Systems
Water is injected into the exhaust system to cool the gasses, which are then passed through the outlet. The injected water lowers the temperature of the exhaust gasses from as high as 2000ºF to below 250°F. This cools the gasses sufficiently enough for the use of flexible silicone hose. The water-cooled exhaust does not cause a fire hazard, and needs no insulation.
Advantages of Silicone:
- Easier to run than rigid pipe
- Not subject to corrosion, stress or cracking Absorbs engine movement and vibration
| Part Number | Inside Diameter Inch MM | Outside Diameter Inch MM | Overall Length Inches | Bellows (Humps) | Burst Pressure - PSI SAE J2006 R3 | Weight LBS | Clamp | ||
| 7901-0009 | 6.00 | 152 | 6.53 | 166 | 8.00 | One | 36 | 3 | 2584-0662 |
| 7901-0010 | 8.00 | 203 | 8.53 | 217 | 8.00 | One | 36 | 3.5 | 2584-0862 |
| 7901-0011 | 10.00 | 254 | 10.53 | 267 | 8.00 | One | 36 | 4 | - |
| 7901-0012 | 10.00 | 254 | 10.53 | 267 | 12.00 | One | 36 | 5.5 | - |
| 7901-0013 | 10.00 | 254 | 10.53 | 267 | 14.00 | Two | 36 | 7 | - |
| 7901-0001 | 12.00 | 305 | 12.53 | 318 | 12.00 | One | 36 | 7.5 | - |
| 7901-0002 | 12.00 | 305 | 12.53 | 318 | 14.00 | Two | 36 | 8 | - |
| 7901-0003 | 14.00 | 356 | 14.53 | 369 | 14.00 | Two | 36 | 9 | - |
| 7901-0006 | 14.00 | 356 | 14.53 | 369 | 20.00 | Two | 36 | 12.5 | - |
| 7901-0004 | 16.00 | 406 | 16.53 | 420 | 14.00 | Two | 36 | 12 | - |
| 7901-0007 | 16.00 | 406 | 16.53 | 420 | 20.00 | Two | 36 | 14 | - |
| 7901-0005 | 18.00 | 457 | 18.53 | 471 | 18.00 | Two | 36 | 16 | - |
*Specifications for reference only. Specific test data available on request.
Available in the following hose ID sizes:
ID Fractional (Inch) | 6” | 8” | 10” | 12” | 14” | 16” | 18” |
ID Decimal (Inch) | 6.00 | 8.00 | 10.00 | 12.00 | 14.00 | 16.00 | 18.00 |
ID Millimeter | 152mm | 203mm | 254mm | 305mm | 356mm | 406mm | 457mm |
Standard Sizes (ID x OAL) | 6.00” x 8.00” | 8.00” x 8.00” | 10.00” x 8.00” | 10.00” x 12.00” | 10.00” x 14.00” | 12.00” x 12.00” | 12.00” x 14.00” | 14.00” x 14.00” | 14.00” x 20.00” | 16.00” x 14.00” | 16.00” x 20.00” | 18.00” x 18.00” |
*Additional & Custom Sizes Available!
