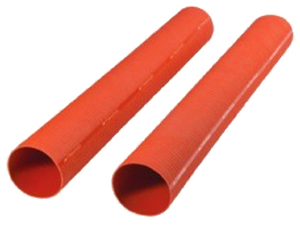

7851 Series: Meta-Aramid Reinforced Turbo Sleeves
Stocked in 3’ lengths
Construction:
- 4-Ply Silicone Coated Meta-Aramid Fabric Reinforcement
Specifications:
- Temperature range is -65°F (-54°C) to +500°F (+260°C)
- Wall thickness is .090/.135
Applications:
- For connection between the turbocharger and the engine
- Resists chemicals, steam, ozone, coolants, and aging conditions normally found in the engine environment
| Part Number | Inside Diameter Inch|MM | Outside Diameter Inch|MM | Burst Pressure (PSI) | Maximum Operating Pressure - (PSI) | Weight (LB/FT) | Clamp | ||
| 7851-100 | 1.00 | 25 | 1.23 | 31 | 135 | 45 | 0.50 | 2582-0012 |
| 7851-150 | 1.50 | 38 | 1.73 | 44 | 120 | 40 | 0.60 | 2583-0150 or 2584-0212 |
| 7851-200 | 2.00 | 51 | 2.23 | 57 | 105 | 35 | 0.70 | 2583-0200 or 2584-0262 |
| 7851-250 | 2.50 | 64 | 2.73 | 69 | 90 | 30 | 0.80 | 2583-0250 or 2584-0312 |
| 7851-300 | 3.00 | 76 | 3.23 | 82 | 75 | 25 | 0.90 | 2583-0300 or 2584-0362 |
| 7851-350 | 3.50 | 89 | 3.73 | 95 | 60 | 20 | 1.00 | 2583-0350 or 2584-0412 |
| 7851-400 | 4.00 | 102 | 4.23 | 107 | 45 | 15 | 1.10 | 2583-0400 or 2584-0462 |
| 7851-500 | 5.00 | 127 | 5.23 | 133 | 30 | 10 | 1.20 | 2583-0500 or 2584-0562 |
| 7851-600 | 6.00 | 152 | 6.23 | 158 | 30 | 10 | 1.30 | 2584-0662 |
*Specifications for reference only. Specific test data available on request.
