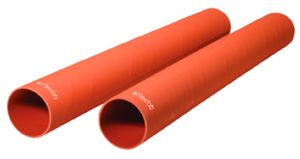

7703 Series: Heavy Duty Fiberglass Reinforced Turbo Sleeves
Stocked in 3’ lengths only
Limited sizes available
Construction:
- 6 Ply Heavy Duty Silicone Coated Fiberglass Fabric Reinforcement
Specifications:
- Temperature range is -65°F (-54°C) to +500°F (+260°C)
- Wall thickness is .140/.183
Applications:
- For connection between the turbocharger and the engine (where no vibration is present)
- Resists chemicals, steam, ozone, coolants, and aging conditions normally found in the engine environment
| Part Number | Inside Diameter Inch|MM | Outside Diameter Inch|MM | Burst Pressure (PSI) | Maximum Operating Pressure - (PSI) | Weight (LB/FT) | Clamp | ||
| 7703-200 | 2.00 | 51 | 2.63 | 67 | 210 | 70 | 1.4 | 2583-0212 or 2584-0262 |
| 7703-250 | 2.50 | 64 | 3.13 | 80 | 180 | 60 | 1.6 | 2583-0262 or 2584-0312 |
| 7703-300 | 3.00 | 76 | 3.63 | 92 | 150 | 50 | 1.8 | 2583-0312 or 2584-0362 |
| 7703-350 | 3.50 | 89 | 4.13 | 105 | 120 | 40 | 2.0 | 2583-0375 or 2584-0412 |
| 7703-400 | 4.00 | 102 | 4.63 | 118 | 90 | 30 | 2.2 | 2583-0400 or 2584-0462 |
*Specifications for reference only. Specific test data available on request.
The 7703 series turbo sleeves were designed to handle higher pressure standards in certain applications. The below chart references the pressure details between the standard turbo sleeves 7701 series and the heavy-duty version 7703 series.
Flexfab Turbo Sleeve Comparison Chart
| FLX7701 Series Turbo Sleeves | |||||
| Inside Diameter | 7701-200 | 7701-250 | 7701-300 | 7701-350 | 7701-400 |
| Operating Pressure PSIG | 35 | 30 | 25 | 20 | 15 |
| Burst Pressure PSIG | 105 | 90 | 75 | 60 | 45 |
| FLX7703 Series Heavy Duty Turbo Sleeves | |||||
| Inside Diameter | 7703-200 | 7703-250 | 7703-300 | 7703-350 | 7703-400 |
| Operating Pressure PSIG | 70 | 60 | 50 | 40 | 30 |
| Burst Pressure PSIG | 210 | 180 | 150 | 120 | 90 |
*Specifications for reference only. Specific test data available on request.
