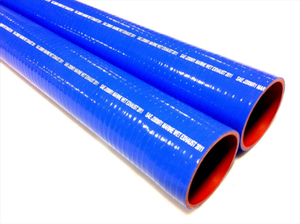

5584 Series: Marine Wet Exhaust Sleeves

Stocked in 3’ lengths
Limited Availability Please Call

Construction:

  • 0.875” ID up to 2” ID: 3-ply Polyester Reinforcement, wall thickness is .155/.200
  • 2.25” ID up to 8” ID: 4-ply Polyester Reinforcement, wall thickness is .175/.240
  • 10” ID up to 16” ID: 6-ply Polyester Reinforcement, wall thickness is .245/.320

Specifications:

  • Meets or exceeds the operating requirements of SAE J2006 R3, ISO33660, SAE J1942
  • Working pressure is 1/3 of the burst pressure
  • Temperature range is -65°F (-54°C) to +350°F (+177°C)

Applications:

  • Marine wet exhaust

Marine Wet Exhaust Systems

Water is injected into the exhaust system to cool the gasses, which are then passed through the outlet. The injected water lowers the temperature of the exhaust gasses from as high as 2000ºF to below 250°F. This cools the gasses sufficiently enough for the use of flexible silicone hose. The water-cooled exhaust does not cause a fire hazard, and needs no insulation.

Advantages of Silicone:

  • Easier to run than rigid pipe
  • Not subject to corrosion, stress or cracking Absorbs engine movement and vibration
  Part NumberInside Diameter Inch              MMOutside Diameter Inch              MMBurst Pressure - PSI SAE J2006 R3Weight (LB/FT)  Clamp
5584-0870.88221.1128361.002582-0012
5584-1001.00251.2431361.002582-0016
5584-1251.25321.4938361.502582-0020
or
2584-0212
5584-1501.50381.7444361.502582-0024
or
2584-0212
5584-1751.75441.9950361.502582-0028
or
2584-0262
5584-2002.00512.2457362.002582-0032
or
2584-0262
5584-2252.25572.6768362.502582-0036
or
2584-0312
5584-2502.50642.9274362.752582-0040
or
2584-0312
5584-2752.75703.1780363.002582-0044
or
2584-0362
5584-2872.88733.3084363.002582-0044
or
2584-0362
5584-3003.00763.4287363.002582-0048
or
2584-0362
5584-3503.50893.9299363.752582-0056
or
2584-0412
5584-4004.001024.42112364.502582-0064
or
2584-0512
5584-4504.501144.92125364.752582-0072
or
2584-0512
5584-5005.001275.42138365.002584-0562
5584-6006.001526.42163369.002584-0662
5584-8008.002038.57218369.502584-0862
5584-100010.0025410.572683617.00-
5584-120012.0030512.573193620.50-
5584-140014.0035614.573703623.50-
5584-160016.0040616.574213629.00-

*Specifications for reference only. Specific test data available on request.



Available in the following hose ID sizes:

ID Fractional (Inch)

7/8”

1”

1-1/4”

1-1/2”

1-3/4”

2”

2-1/4”

2-1/2”

ID Decimal     (Inch)

0.88

1.00

1.25

1.50

1.75

2.00

2.25

2.50

ID Millimeter

22mm

25mm

32mm

38mm

44mm

51mm

57mm

64mm



ID Fractional  (Inch)

2-3/4”

2-7/8”

3”

3-1/2”

4”

4-1/2”

5”

5-1/2”

6”

8”

10”

12”

14”

16”

ID Decimal      (Inch)

2.75

2.88

3.00

3.50

4.00

4.50

5.00

5.50

6.00

8.00

10.00

12.00

14.00

16.00

ID Millimeter

70mm

73mm

76mm

89mm

102mm

114mm

127mm

140mm

152mm

203mm

254mm

305mm

356mm

406mm





*Available in 3’ Ft. Lengths.
