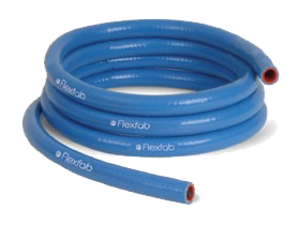

5526 Series - Standard Blue Heater Hose

Engineered with superior flexibility and durability, Global Hose's 5526 Series 1-ply Standard Heater Hose is resistant to coolant additives, as well as hardening, cracking, cold leaks, and aging. It’s extreme duty cycle tested and withstands temperatures from -65°F (-54°C) To +350°F (+177°C).

Benefits

Extreme Temperature Resistance
Superior Flexibility
Bend Radius 5 X ID
Extreme Duty Cycle Tested for Hostile Engine Environments
Durable Construction
Coolant Additives
Box and Spool Lengths Available

Construction

Flexfab 5526 Series: Silicone Hose with 1-Ply of Nylon Fiber Reinforcement
Available in Blue
Stocked In 25’ And 50’ Boxes
Available in Longer Lengths on Standard Wooden Spools -continuous lengths are not guaranteed, if continuous lengths are required please contact us for price and availability*

Specifications

Meets or Exceeds the Operating Requirements of SAE J20 R3 Class A
Meets or Exceeds the Operating Requirements of TMC RP303B Class I Grade II
Standard Wall Thickness is .140”/.170”
Working Pressure is 1/3 of the Burst Pressure
Bend Radius is 5 Times the ID of the Hose
Resists Hardening, Cracking, Cold Leaks, Aging, and Many Chemicals

Part Number	Inside Diameter Inch MM		Outside Diameter Inch MM		Actual Burst Pressure - PSI	Burst Pressure PSI SAE J20 R3 TMC		Weight (LB/FT)	Overall Length (Feet)	Clamp
5526-025x25	0.25	6	0.58	15	320	250	125	0.111	25’ Box	-
5526-025x50	0.25	6	0.58	15	320	250	125	0.111	50’ Box	-
5526-025x250	0.25	6	0.58	15	320	250	125	0.111	250’ Spool	-
5526-025x800	0.25	6	0.58	15	320	250	125	0.111	800’ Spool	-
5526-031x25	0.31	8	0.64	16	310	250	125	0.128	25’ Box	-
5526-031x50	0.31	8	0.64	16	310	250	125	0.128	50’ Box	-
5526-031x600	0.31	8	0.64	16	310	250	125	0.128	600’ Spool	-
5526-038x25	0.38	10	0.71	18	310	250	125	0.145	25’ Box	2582-0006
5526-038x50	0.38	10	0.71	18	310	250	125	0.145	50’ Box	2582-0006
5526-038x250	0.38	10	0.71	18	310	250	125	0.145	250’ Spool	2582-0006
5526-038x600	0.38	10	0.71	18	310	250	125	0.145	600’ Spool	2582-0006
5526-050x25	0.50	13	0.83	21	310	250	125	0.181	25’ Box	2582-0006
5526-050x50	0.50	13	0.83	21	310	250	125	0.181	50’ Box	2582-0006
5526-050x250	0.50	13	0.83	21	310	250	125	0.181	250’ Spool	2582-0006
5526-050x500	0.50	13	0.83	21	310	250	125	0.181	500’ Spool	2582-0006
5526-062x25	0.63	16	0.96	24	300	250	125	0.216	25’ Box	2582-0008
5526-062x50	0.63	16	0.96	24	300	250	125	0.216	50’ Box	2582-0008
5526-062x250	0.63	16	0.96	24	300	250	125	0.216	250’ Spool	2582-0008
5526-062x400	0.63	16	0.96	24	300	250	125	0.216	400’ Spool	2582-0008
5526-075x25	0.75	19	1.08	27	300	200	125	0.25	25’ Box	2582-0010
5526-075x50	0.75	19	1.08	27	300	200	125	0.25	50’ Box	2582-0010
5526-075x250	0.75	19	1.08	27	300	200	125	0.25	250’ Spool	2582-0010
5526-075x300	0.75	19	1.08	27	300	200	125	0.25	300’ Spool	2582-0010
5526-087x25	0.88	22	1.21	31	250	175	125	0.287	25’ Box	2582-0012
5526-087x50	0.88	22	1.21	31	250	175	125	0.287	50’ Box	2582-0012
5526-087x200	0.88	22	1.21	31	250	175	125	0.287	200’ Spool	2582-0012
5526-100x25	1.00	25	1.33	34	250	175	125	0.324	25’ Box	2582-0016
5526-100x50	1.00	25	1.33	34	250	175	125	0.324	50’ Box	2582-0016
5526-100x200	1.00	25	1.33	34	250	175	125	0.324	200’ Spool	2582-0016
5526-125x25	1.25	32	1.58	40	200	175	125	0.385	25’ Box	2582-0020
5526-125x50	1.25	32	1.58	40	200	175	125	0.385	50’ Box	2582-0020
5526-125x150	1.25	32	1.58	40	200	175	125	0.385	150’ Spool	2582-0020

*Specifications for reference only. Specific test data available on request.

Available in the following hose ID sizes:

ID Fractional (Inch)	¼”	5/16”	3/8”	½”	5/8”	¾”	7/8”	1”	1-1/4”
ID Decimal (Inch)	0.25	0.31	0.38	0.50	0.63	0.75	0.88	1.00	1.25
ID Millimeter	6mm	8mm	10mm	13mm	16mm	19mm	22mm	25mm	32mm

Available in Boxed Coils and on Reels

Boxed Coils	25’ Ft.	50” Ft.
Reels	200’ Ft.	250’ Ft.	300’ Ft.	400’ Ft.	500’ Ft.	600’ Ft.	800’ Ft.
