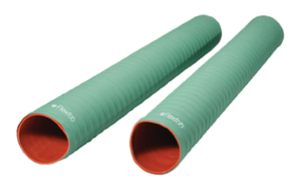

5508 Series Wire Reinforced Coolant Hose
Green Cover, 2-Ply Polyester Reinforced Hose with Helical Wire Stocked in 3’ Lengths
12’ Lengths Also Available (Please Call for Availability)
Construction:
- Silicone hose with 2 plies of Polyester Reinforcement, with Helical Wire
Specifications:
- Meets or exceeds the operating requirements of SAE J20 R2 Class A
- Temperature range is - 65°F (- 54°C) to +350°F (+177°C)
- Wall thickness at hose ends exclusive of wire gauge .130”/.180”
- Working pressure is 1/3 of the burst pressure
- Negative pressure is - 10 PSI
Applications:
- For heavy duty pressure connections in hostile engine environments
- Resists hardening, cracking, cold leaks, aging, and many chemicals
- For connections utilizing high vacuum and/or some forced curvature
- Ideal for extreme temperature and various pressure ranges where high performance levels are required
| Part Number | Inside Diameter Inch MM | Outside Diameter Inch MM | Burst Pressure PSI | Max Neg. PSI | Bend Radius (Inch) | Weight (LB/FT) | ||
| 5508-050 | 0.50 | 13 | 0.92 | 23 | 600 | 10 | 2.00 | 0.17 |
| 5508-062 | 0.63 | 16 | 1.05 | 27 | 600 | 10 | 2.25 | 0.21 |
| 5508-075 | 0.75 | 19 | 1.17 | 30 | 600 | 10 | 2.50 | 0.23 |
| 5508-087 | 0.88 | 22 | 1.30 | 33 | 550 | 10 | 2.75 | 0.26 |
| 5508-100 | 1.00 | 25 | 1.42 | 36 | 550 | 10 | 3.00 | 0.30 |
| 5508-125 | 1.25 | 32 | 1.67 | 42 | 525 | 10 | 3.50 | 0.36 |
| 5508-150 | 1.50 | 38 | 1.92 | 49 | 500 | 10 | 4.00 | 0.43 |
| 5508-175 | 1.75 | 44 | 2.17 | 55 | 475 | 10 | 4.50 | 0.51 |
| 5508-200 | 2.00 | 51 | 2.42 | 61 | 450 | 10 | 5.00 | 0.56 |
| 5508-225 | 2.25 | 57 | 2.67 | 68 | 400 | 10 | 5.50 | 0.65 |
| 5508-250 | 2.50 | 64 | 2.92 | 74 | 350 | 10 | 6.00 | 0.74 |
| 5508-275 | 2.75 | 70 | 3.17 | 81 | 325 | 10 | 6.50 | 0.79 |
| 5508-300 | 3.00 | 76 | 3.42 | 87 | 300 | 10 | 7.00 | 0.85 |
| 5508-350 | 3.50 | 89 | 3.92 | 100 | 275 | 10 | 8.00 | 1.09 |
| 5508-400 | 4.00 | 102 | 4.42 | 112 | 250 | 10 | 9.00 | 1.19 |
| 5508-600 | 6.00 | 152 | 6.42 | 163 | 125 | 10 | 13.00 | 1.84 |
Wire reinforced coolant hoses are designed to handle vacuum and/or some forced curvature.
Available in the following hose ID sizes:
ID Fractional (Inch) | ½” | 5/8” | ¾” | 7/8” | 1” | 1-1/4” | 1-1/2” | 1-3/4” | 2” | 2-1/4” | 2-1/2” |
ID Decimal (Inch) | 0.50 | 0.63 | 0.75 | 0.88 | 1.00 | 1.25 | 1.50 | 1.75 | 2.00 | 2.25 | 2.50 |
ID Millimeter | 13mm | 16mm | 19mm | 22mm | 25mm | 32mm | 38mm | 44mm | 51mm | 57mm | 64mm |
ID Fractional (Inch) | 2-3/4” | 3” | 3-1/2” | 4” | 5” | 6” |
ID Decimal (Inch) | 2.75 | 3.00 | 3.50 | 4.00 | 5.00 | 6.00 |
ID Millimeter | 70mm | 76mm | 89mm | 102mm | 127mm | 152mm |
*Available in 3’ Ft. & 12’ Ft. Lengths.
