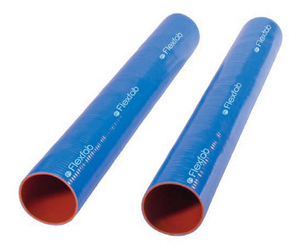

5415 Series: 3-Ply Glossy Coolant Hose

Download PDF

Only Available in a Blue Cover Stocked in 3’ Lengths

Construction:

Silicone hose with 3-plies of Polyester Reinforcement

Specifications:

Meets or exceeds the operating requirements of SAE J20 R1 Class A
Meets or exceeds the operating requirements of TMC RP303B Class I Grade II
Temperature range is -65°F (-54°C) to +350°F (+177°C)
Custom Wall Thickness is .140”/.190”
Working pressure is 1/3 of the burst pressure

Applications:

For heavy duty pressure connections in hostile engine environments
Resists hardening, cracking, cold leaks, aging, and many chemicals
Ideal for extreme temperature and various pressure ranges where high performance levels are required

Part Number	Inside Diameter Inch MM		Outside Diameter Inch MM		Actual Burst Pressure - PSI	Burst Pressure - PSI SAE J20 R1 TMC		Weight (LB/FT)	Clamp
5415-038	0.38	10	0.70	18	500	425	125	0.12	-
5415-050	0.50	13	0.82	21	500	425	125	0.16	2582-0006
5415-062	0.63	16	0.95	24	485	425	125	0.20	2582-0010
5415-075	0.75	19	1.07	27	475	325	125	0.24	2582-0012
5415-087	0.88	22	1.20	30	465	300	125	0.28	2582-0012
5415-100	1.00	25	1.32	34	450	300	125	0.32	2582-0016
5415-112	1.13	29	1.45	37	435	300	125	0.36	2582-0016 or 2584-0175
5415-125	1.25	32	1.57	40	425	275	125	0.40	2582-0020 or 2584-0175
5415-138	1.38	35	1.70	43	400	250	125	0.44	2582-0020 or 2584-0212
5415-150	1.50	38	1.82	46	375	250	125	0.48	2582-0024 or 2584-0212
5415-162	1.63	41	1.95	50	350	225	125	0.52	2582-0024 or 2584-0212
5415-175	1.75	44	2.07	53	300	225	125	0.56	2582-0028 or 2584-0262
5415-187	1.88	48	2.20	56	250	200	100	0.60	2582-0032 or 2584-0262
5415-200	2.00	51	2.32	59	250	200	100	0.64	2582-0032 or 2584-0262
5415-212	2.13	54	2.45	62	235	175	100	0.68	2582-0032 or 2584-0262
5415-225	2.25	57	2.57	65	225	175	100	0.72	2582-0036 or 2584-0312
5415-238	2.38	60	2.70	69	210	150	100	0.76	2582-0040 or 2584-0312
5415-250	2.50	64	2.82	72	200	150	100	0.80	2582-0040 or 2584-0312
5415-262	2.63	67	2.95	75	200	125	100	0.84	2582-0040 or 2584-0312
5415-275	2.75	70	3.07	78	200	125	100	0.88	2582-0044 or 2584-0362
5415-287	2.88	73	3.20	81	200	100	100	0.92	2582-0044 or 2584-0362
5415-300	3.00	76	3.32	84	200	100	100	0.96	2582-0048 or 2584-0362
5415-312	3.13	80	3.45	88	175	75	100	1.00	2582-0048 or 2584-0362
5415-325	3.25	83	3.57	91	175	75	100	1.04	2582-0052 or 2584-0412
5415-338	3.38	86	3.70	94	150	75	100	1.08	2582-0052 or 2584-0412
5415-350	3.50	89	3.82	97	150	75	100	1.12	2582-0056 or 2584-0412
5415-375	3.75	95	4.07	103	135	50	100	1.20	2582-0060 or 2584-0412
5415-387	3.88	99	4.20	107	125	50	100	1.24	2582-0060 or 2584-0462
5415-400	4.00	102	4.32	110	125	50	100	1.28	2582-0064 or 2584-0462
5415-450	4.50	114	4.82	122	100	N/A	N/A	1.44	2582-0072 or 2584-0512
5415-500	5.00	127	5.32	135	90	N/A	N/A	1.60	2584-0562
5415-550	5.50	140	5.82	148	75	N/A	N/A	1.76	2584-0612
5415-600	6.00	152	6.32	161	75	N/A	N/A	1.92	2584-0662

*Specifications for reference only. Specific test data available on request.

Available in the following hose ID sizes:

ID Fractional (Inch)

3/8”

½”

5/8”

¾”

7/8”

1”

1-1/8”

1-1/4”

1-3/8”

1-1/2”

1-5/8”

1-3/4”

1-7/8”

2”

2-1/8”

2-1/4”

2-3/8”

2-1/2”

2-5/8”

ID Decimal (Inch)

0.38

0.50

0.63

0.75

0.88

1.00

1.13

1.25

1.38

1.50

1.63

1.75

1.88

2.00

2.13

2.25

2.38

2.50

2.63

ID Millimeter

10mm

13mm

16mm

19mm

22mm

25mm

29mm

32mm

35mm

38mm

41mm

44mm

48mm

51mm

54mm

57mm

60mm

64mm

67mm

ID Fractional (Inch)

2-3/4”

2-7/8”

3”

3-1/8”

3-1/4”

3-3/8”

3-1/2”

3-3/4”

3-7/8”

4”

4-1/2”

5”

5-1/2”

6”

ID Decimal (Inch)

2.75

2.88

3.00

3.13

3.25

3.38

3.50

3.75

3.88

4.00

4.50

5.00

5.50

6.00

ID Millimeter

70mm

73mm

76mm

80mm

83mm

86mm

89mm

95mm

99mm

102mm

114mm

127mm

140mm

152mm

*Available in 3’ Ft. & 12’ Ft. Lengths.
