Specification Detail
3" Silicone Hose
3” Silicone hose is offered in Coolant, Flexible Coolant, CAC Boots, Turbo Sleeves, Elbows 90 & 45 Deg, High Temp and Marine Wet Exhaust.

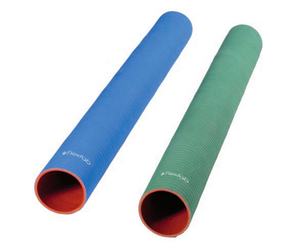

*For example: Our Coolant hose is available in a Blue or Green Cover Stocked in 3’ Lengths
12’ Lengths Also Available (Please Call for Availability)
Construction:
- Silicone hose with 3 or 4 plies of Polyester Reinforcement
Applications:
- For heavy duty pressure connections in hostile engine environments
- Resists hardening, cracking, cold leaks, aging, and many chemicals
- Ideal for extreme temperature and various pressure ranges where high performance levels are required
*Scroll down to see more silicone hose options available in 3” ID.
3-Ply 3" Silicone Hose
Specifications:
- SAE J20 R1 Class A
- TMC RP303B Class I Grade II
- Temperature range is -65°F (-54°C) to +350°F (+177°C)
- Custom Wall Thickness is .140”/.190”
- Working pressure is 1/3 of the burst pressure
| Blue Series Part Number | Green Series Part Number | Inside Diameter Inch MM | Outside Diameter Inch MM | Actual Burst Pressure - PSI | Burst Pressure - PSI SAE J20 R1 TMC | Weight (LB/FT) | Clamp | |||
| 5515-300 | 5500-300 | 3.00 | 76 | 3.32 | 84 | 200 | 100 | 100 | 0.96 | 2582-0048 or 2584-0362 |
| 5515-312 | 5500-312 | 3.13 | 80 | 3.45 | 88 | 175 | 75 | 100 | 1.00 | 2582-0048 or 2584-0362 |
| 5515-325 | 5500-325 | 3.25 | 83 | 3.57 | 91 | 175 | 75 | 100 | 1.04 | 2582-0052 or 2584-0412 |
| 5515-338 | 5500-338 | 3.38 | 86 | 3.70 | 94 | 150 | 75 | 100 | 1.08 | 2582-0052 or 2584-0412 |
| 5515-350 | 5500-350 | 3.50 | 89 | 3.82 | 97 | 150 | 75 | 100 | 1.12 | 2582-0056 or 2584-0412 |
| 5515-375 | 5500-375 | 3.75 | 95 | 4.07 | 103 | 135 | 50 | 100 | 1.20 | 2582-0060 or 2584-0412 |
| 5515-387 | 5500-387 | 3.88 | 99 | 4.20 | 107 | 125 | 50 | 100 | 1.24 | 2582-0060 or 2584-0462 |
*Specifications for reference only. Specific test data available on request.
4-Ply 3" Silicone Hose
Specifications:
- SAE J20 R1 Class A
- TMC RP303B Class I Grade II
- Temperature range is -65°F (-54°C) to +350°F (+177°C)
- Standard Wall Thickness is .170”/.220”
- Working pressure is 1/3 of the burst pressure
| Blue Series Part Number | Green Series Part Number | Inside Diameter Inch MM | Outside Diameter Inch MM | Actual Burst Pressure - PSI | Burst Pressure - PSI SAE J20 R1 TMC | Weight (LB/FT) | Clamp | |||
| 5581-300 | 5501-300 | 3.00 | 76 | 3.39 | 86 | 250 | 100 | 100 | 1.17 | 2582-0048 or 2584-0362 |
| 5581-312 | 5501-312 | 3.13 | 80 | 3.52 | 89 | 225 | 75 | 100 | 1.22 | 2582-0052 or 2584-0412 |
| 5581-325 | 5501-325 | 3.25 | 83 | 3.64 | 92 | 225 | 75 | 100 | 1.27 | 2582-0052 or 2584-0412 |
| 5581-338 | 5501-338 | 3.38 | 86 | 3.77 | 96 | 200 | 75 | 100 | 1.32 | 2582-0056 or 2584-0412 |
| 5581-350 | 5501-350 | 3.50 | 89 | 3.89 | 99 | 200 | 75 | 100 | 1.37 | 2582-0056 or 2584-0412 |
| 5581-375 | 5501-375 | 3.75 | 95 | 4.14 | 105 | 175 | 50 | 100 | 1.46 | 2582-0060 or 2584-0462 |
*Specifications for reference only. Specific test data available on request.
