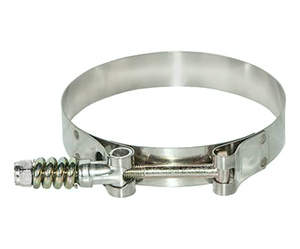

2588 Series: Spring Loaded T-Bolt Clamps
Spring-Loaded T-bolt clamps are designed to compensate for fluctuations in all types of hose line assemblies. When temperature and/or pressure changes cause hose lines to expand or contract, Spring-Loaded T-bolt Clamps adjust accordingly to provide constant band tension.
Specifications:
- All 316-grade stainless steel Spring-Loaded T-bolt clamps
- Hex Head: 5/16”
- Band Width: 3/4”
- Resists salt water and may be used in marine applications
Applications:
- Recommended for silicone coolant hose, CAC hose, turbo sleeves, marine hose, 90 and 45 degree elbows, and silfab ducting.
| Part Number - Clamps Spring Loaded T-Bolt | Min. Dia. (in.) | Max. Dia. (in.) | Min. Dia. (mm) | Max. Dia. (mm) | Pack Size | Weight LBS - Per 10 |
| FLX2588-0306 | 3.0625 | 3.375 | 77.8 | 85.7 | 10 | 2 |
| FLX2588-0356 | 3.562 | 3.875 | 90.5 | 98.4 | 10 | 2 |
| FLX2588-0406 | 4.0625 | 4.375 | 103.2 | 111.1 | 10 | 2 |
| FLX2588-0456 | 4.562 | 4.875 | 115.9 | 123.8 | 10 | 2 |
| FLX2588-0506 | 5.0652 | 5.375 | 128.59 | 136.53 | 10 | 2 |
*Specifications for reference only.
