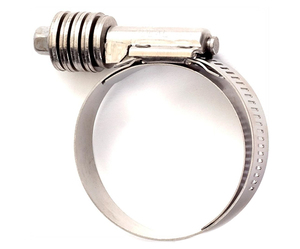

2584 Series: Constant Tension Clamps

Please call for availability

Belleville spring and clamp construction is built to respond to constant temperature fluctuations. The larger, heavy-gauge, precision- formed springs provide higher rates of band tension and adjustment for a more dependable seal. The inner liner protects against shearing of the hose surface. This type of clamp provides a uniform 360° seal.

For use on: Coolant Hose, Heater Hose, Marine Hose and Silicone Tubing.

Specifications:

• All 300-grade stainless steel Constant Tension lined clamps
• Hex Head: 3/8”
• Band Width: 5/8”
• Resists salt water and may be used in marine applications

Applications:

• Recommended for silicone coolant hose, heater hose, marine, and silicone tubing

---

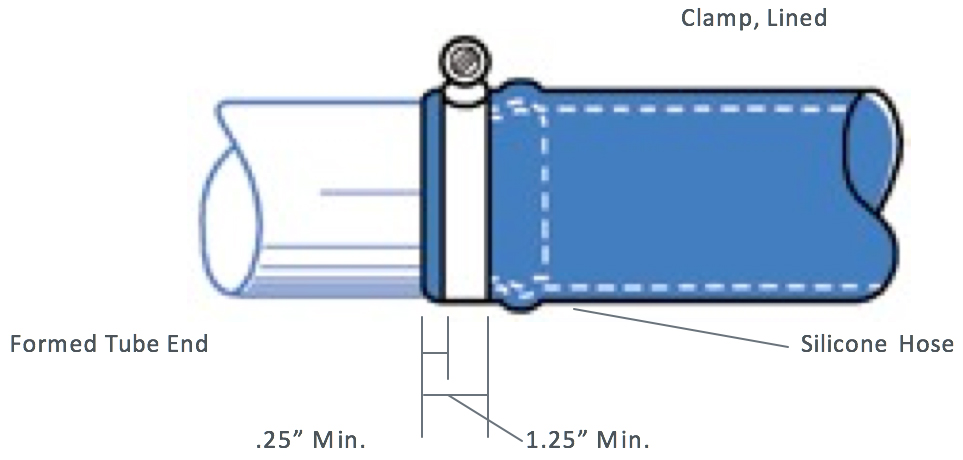

Coolant And Heater Hose Clamping Instructions

Worm gear or constant torque type stainless steel clamps with inner liner are recommended for silicone heater and coolant hose. Initial clamp torque should be 40 inch-lbs. If re-torqueing is required, it should be limited to 20 inch-lbs. Do not use serrated, slotted, or wire type clamps.
