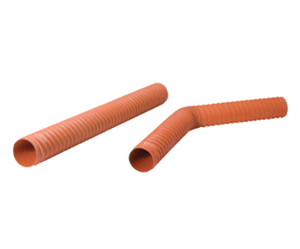

2563 Series: Sil-Fab2™ Nylon Rod Reinforced Duct
Stocked in 12’ Lengths
2-Ply Silicone-coated fiberglass fabric with Nylon Rod Reinforcement (No Cuffs)
Construction:
- Double-Ply, Silicone-Coated Woven Fiberglass Hose
- Manufactured with nylon rod reinforcement
- Helically wound Nylon Fiber for flexibility
Specifications:
- Vulcanized for long service life
- Lightweight, non-kinking
- Bend radius equals the inside diameter for hoses up to 2.50” ID
- Bend radius equals 2 times the inside diameter for hoses 3.00” ID and over
- Temperature range is -65°F (-54°C) to +300°F (+149°C)
- Working pressure is 1/3 of the burst pressure
Applications:
- Designed for medium pressure handling of air, dust, fumes, and light powders
- For applications in which metal wire may interfere
- Not recommended for handling liquids or abrasive materials
- Not recommended for charge air applications
Diagram Of Airflow Sil-Fab2™
Unrestricted inside diameter in bends or axial compression is only available by using Sil-Fab2. Other flexible hoses create restricted inside diameter in bends or axial compression.
| Part Number | Inside Diameter Inch|MM | Outside Diameter Inch|MM | Burst Pressure PSI | Max. Neg. PSI | Max. Leakage CFM | Bend Radius (Inch) | Weight (LBS) | ||
| 2563-125 | 1.25 | 32 | 1.65 | 42 | 27 | -1 | 0.02 | 1.25 | 1.08 |
| 2563-200 | 2.00 | 51 | 2.40 | 61 | 15 | -1 | 0.02 | 2.00 | 1.73 |
| 2563-250 | 2.50 | 64 | 2.90 | 74 | 15 | -1 | 0.02 | 2.50 | 2.16 |
| 2563-300 | 3.00 | 76 | 3.40 | 86 | 12 | -1 | 0.02 | 6.00 | 2.59 |
| 2563-350 | 3.50 | 89 | 3.90 | 99 | 12 | -1 | 0.02 | 7.00 | 3.02 |
| 2563-400 | 4.00 | 102 | 4.40 | 112 | 9 | -1 | 0.02 | 8.00 | 3.46 |
*Specifications for reference only. Specific test data available on request.
