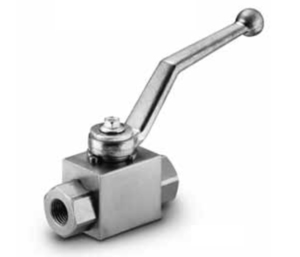

2-Way High Pressure Ball Valves
Product Description
Global Hose provides premium quality 2-way high-pressure ball valves that are capable of withstanding high pressures, and available in a wide range of sizes. Used for a wide range of markets from agriculture to mobile hydraulics, the high-pressure ball valves can be equipped to avoid unauthorized opening and shut-off.
Features
- Available in NPT, SAE and BSPP threaded end connections
- End connection sizing including 1/4", 3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", & 2"
- Working pressures up to 7250 PSI (500 Bar)
- Designed for use as on/off devices for hydraulic applications
- Temperature between -22° and +212°F
- Steel body, ball, stem construction and Delrin Ball Seats
Benefits
- Excellent sealing and easy operation
- Guarantee safety of the whole hydraulic unit
- Environmentally friendly
*Also Available in Stainless Steel
Technical Specs
Part Number | Thread | Working Pressure |
GE2-14-NPT | 1/4" NPTF | 7250 PSI |
GE2-38-NPT | 3/8" NPTF | 7250 PSI |
GE2-12-NPT | 1/2" NPTF | 7250 PSI |
GE2-34-NPT | 3/4" NPTF | 5800 PSI |
GE2-1-NPT | 1" NPTF | 5075 PSI |
*GE2-114T-NPT | 1-1/4" NPTF | 5075 PSI |
*GE2-112T-NPT | 1-1/2" NPTF | 5075 PSI |
*GE2-2T-NPT | 2" NPTF | 5075 PSI |
Part Number | Thread | Working Pressure |
GE2-04-SAE | 7/16-20 UNF | 7250 PSI |
GE2-06-SAE | 9/16-18 UNF | 7250 PSI |
GE2-08-SAE | 3/4-16 UNF | 7250 PSI |
GE2-12-SAE | 1-1/16-12 UNF | 5800 PSI |
GE2-16-SAE | 1-5/16-12 UNF | 5075 PSI |
*GB2-20T-SAE | 1-5/8-12 UNF | 5075 PSI |
*GB2-24T-SAE | 1-7/8-12 UNF | 5075 PSI |
*GB2-32T-SAE | 2-1/2-12 UNF | 5075 PSI |
* = Reduced Port Only
Full Port available by special quote.
